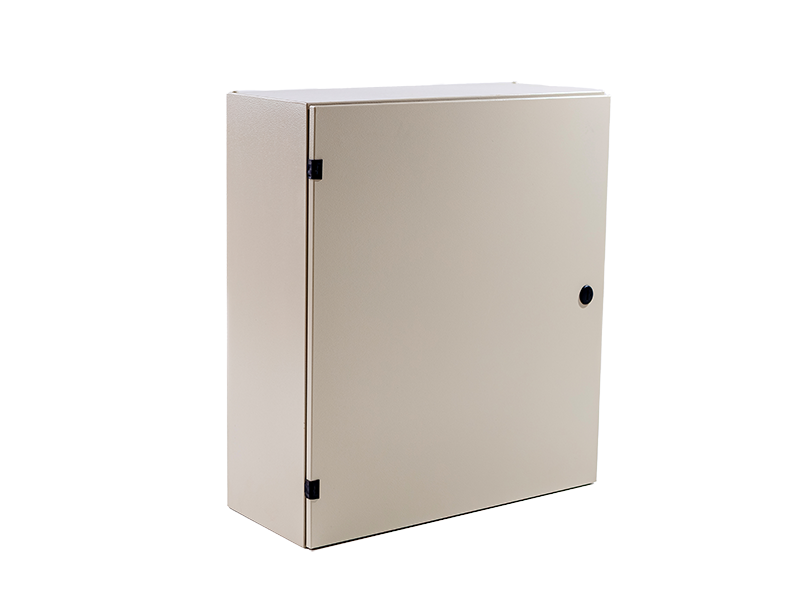

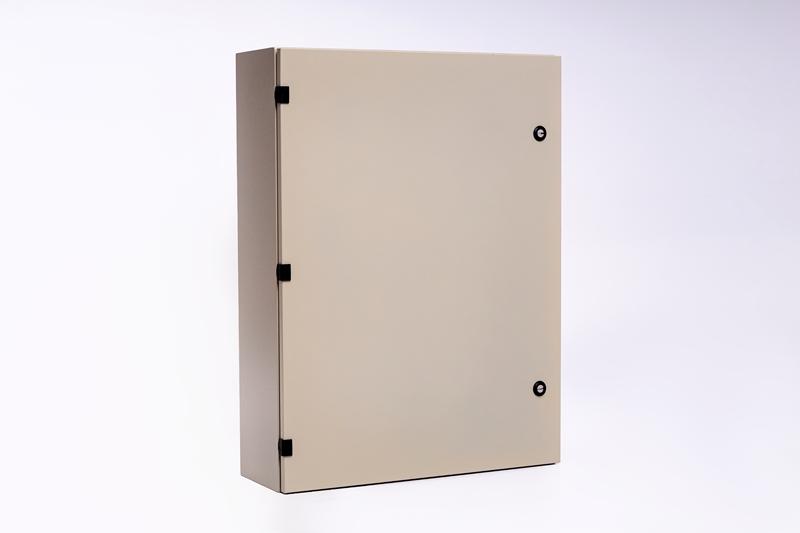

QUADRO SOBREPOR COM FLANGE

Clique na imagem para ampliar.

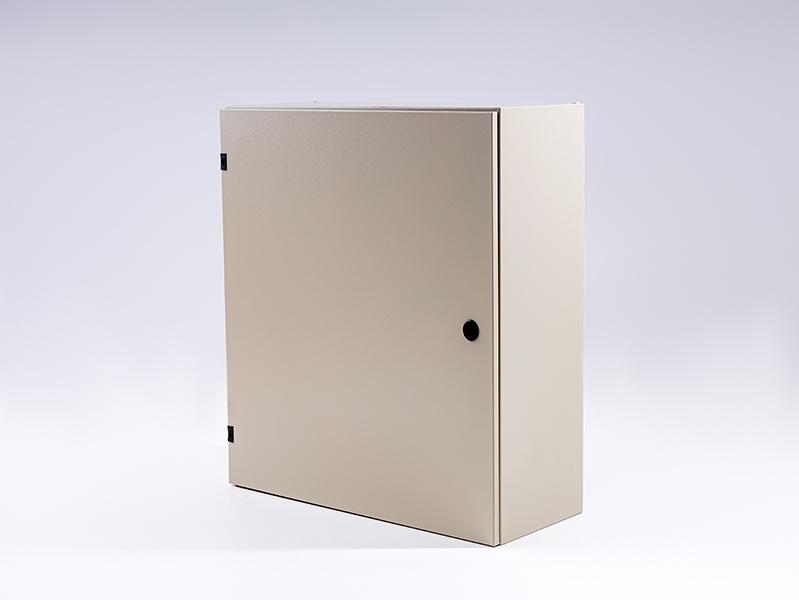

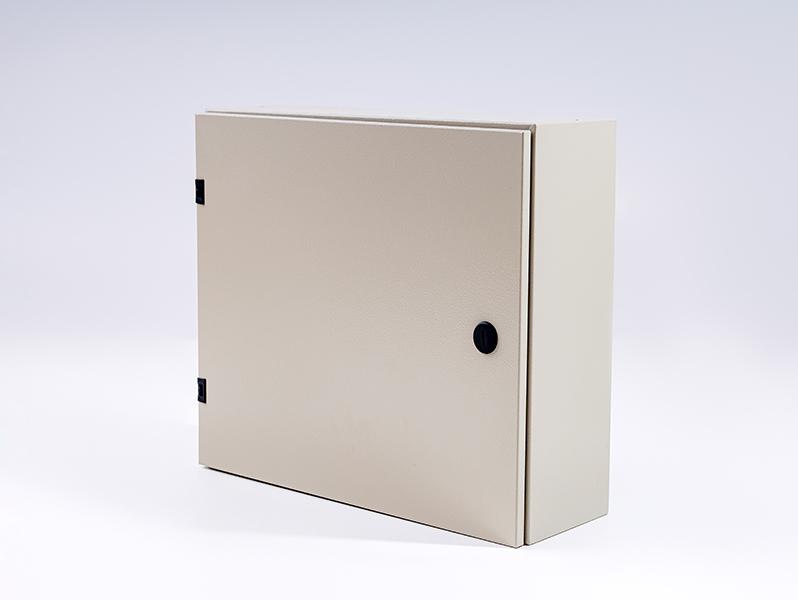

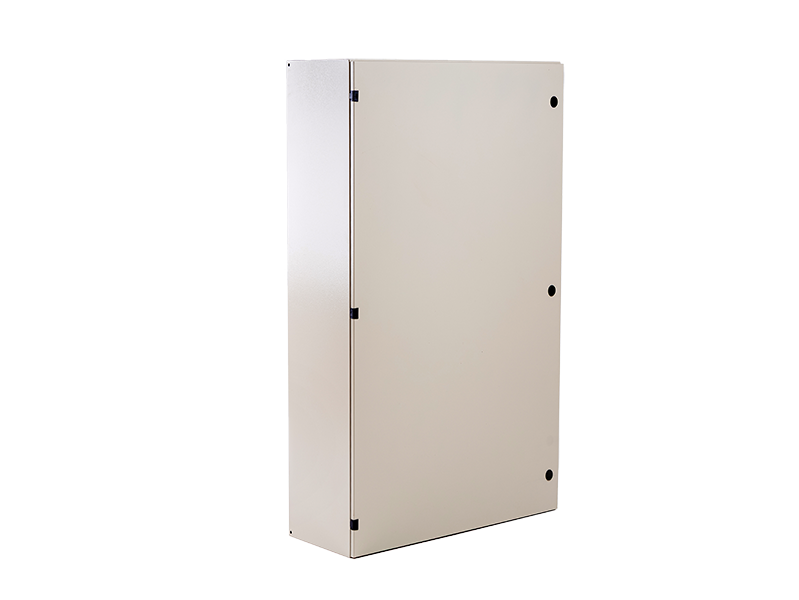

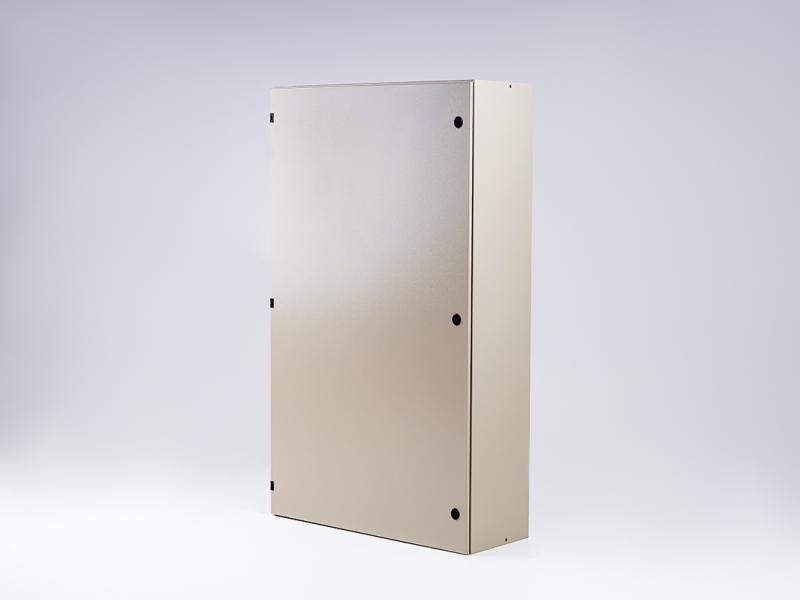

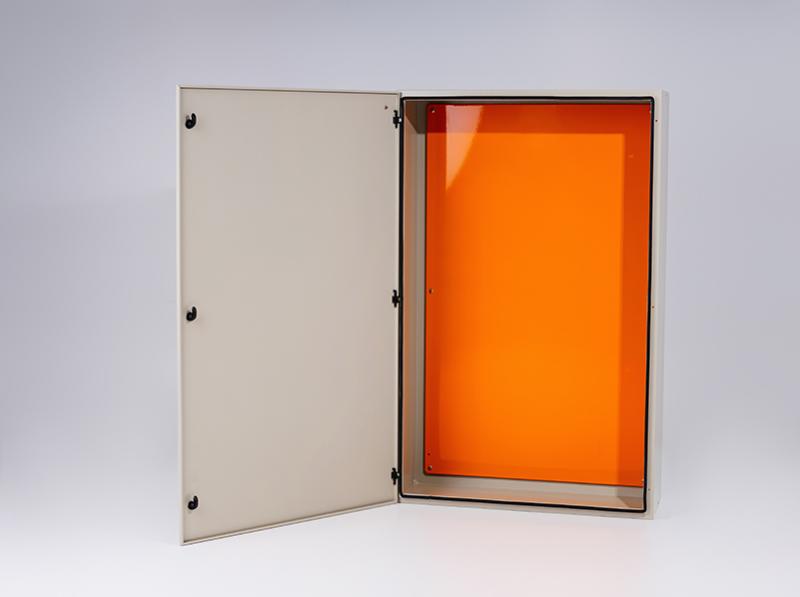

QUADRO DE COMANDO METÁLICO COM PLACA DE MONTAGEM

Corpo fabricado em chapa de aço carbono e com sistema de banho desengraxante para tratamento e acabamento das peças
Pintura em tinta epóxi eletrostática
Caixa na cor cinza claro (RAL7032)

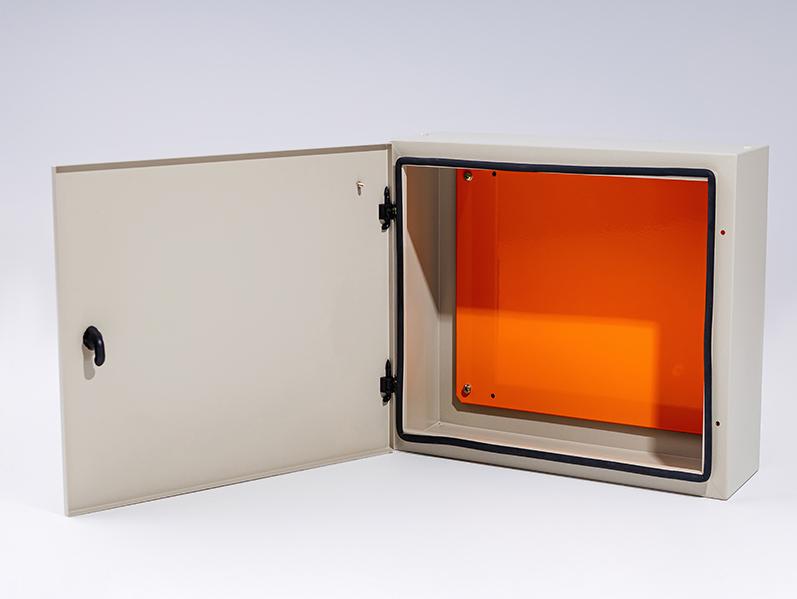

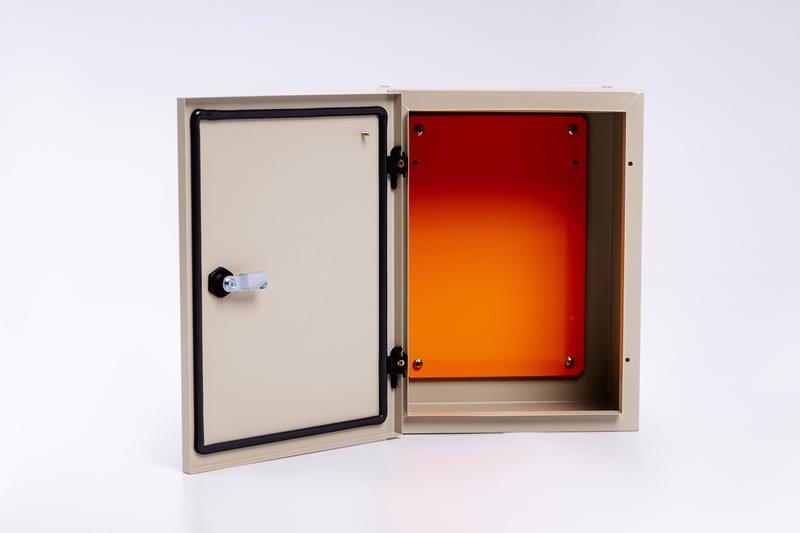

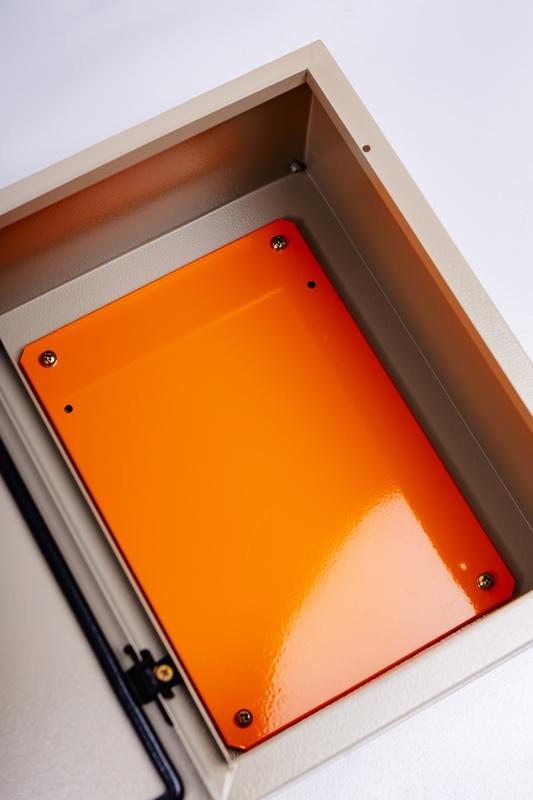

Placa de montagem na cor laranja (RAL2004)
Grau de proteção IP54

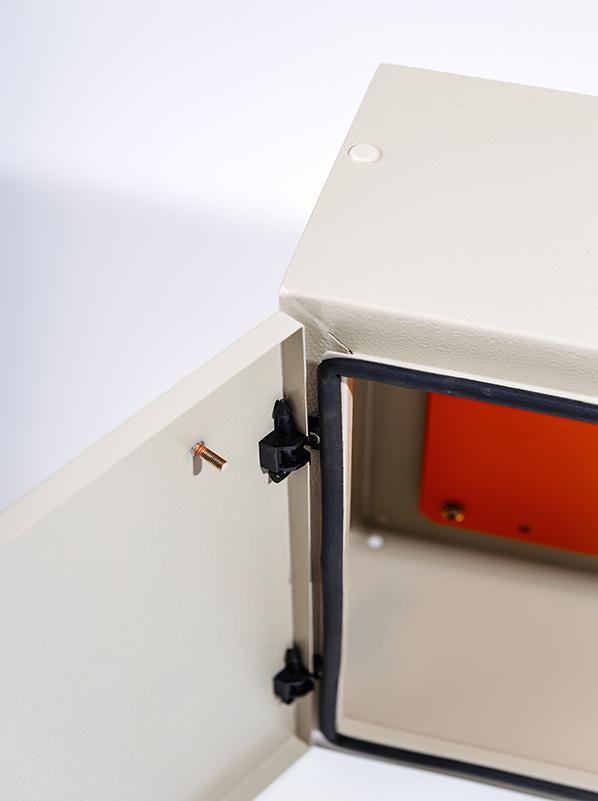

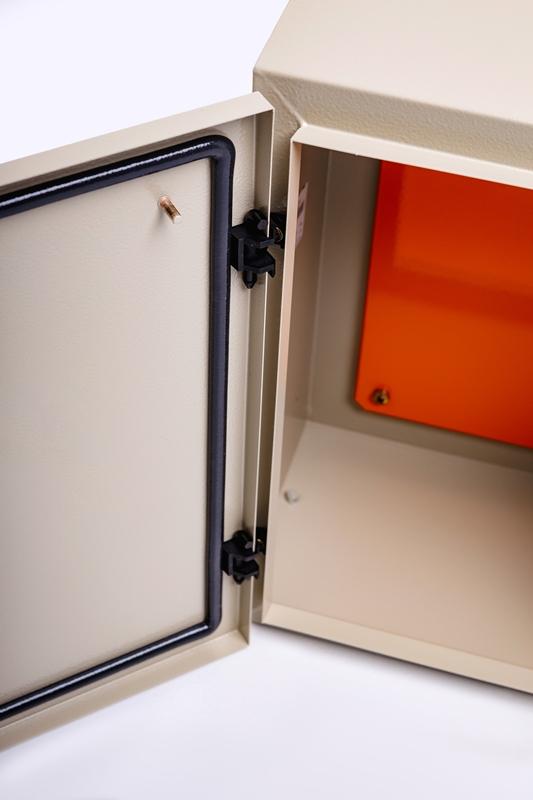

Portas com perfil de borracha

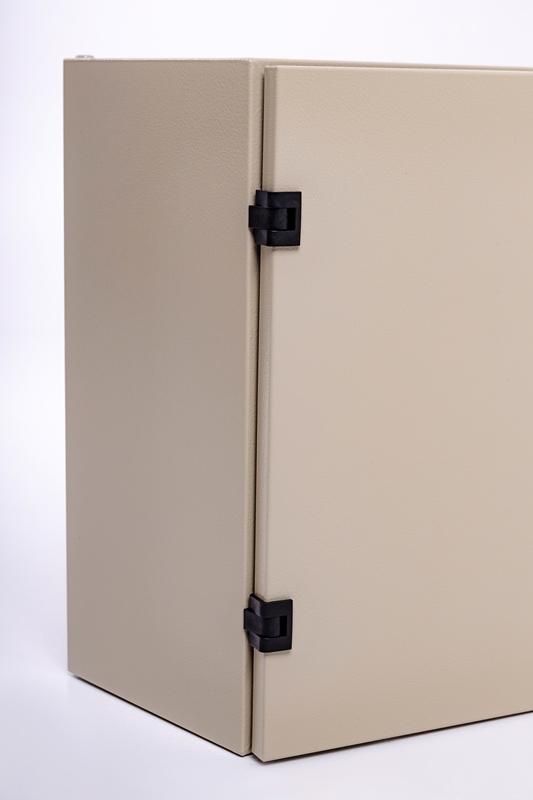

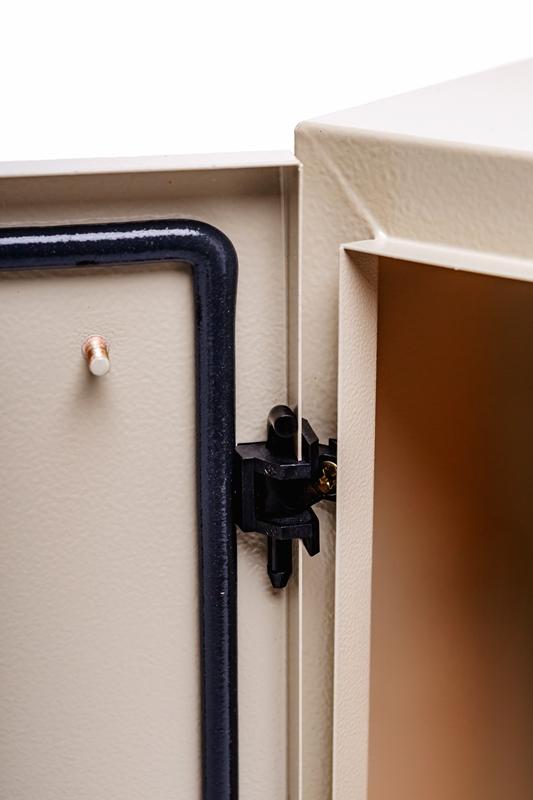

As dobradiças são em polímero à base de nylon e possibilitam abertura da porta em até 180°, de alta resistência
As placas de montagem possuem um afastamento de 10mm do fundo da caixa
Acompanham parafusos nas portas e placas para o aterramento

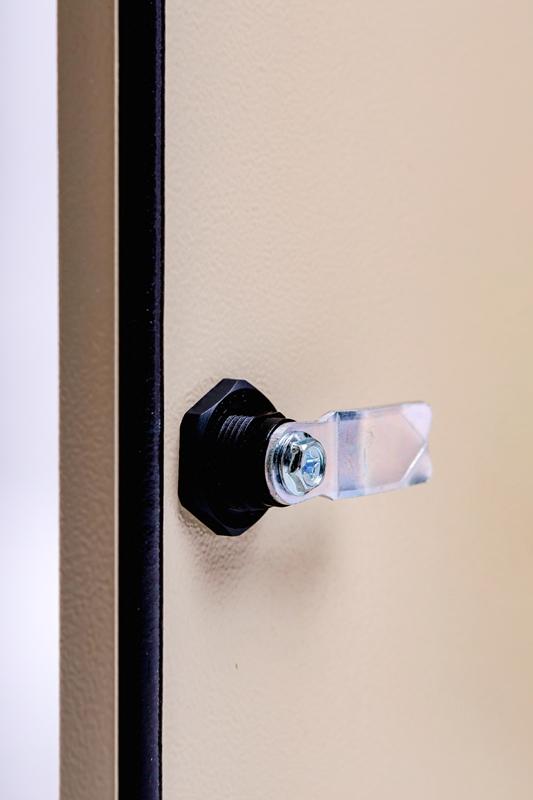

Acompanha fecho padrão fenda. Para outras opções de fechos consultar a empresa para venda avulsa.
Quadros com flange

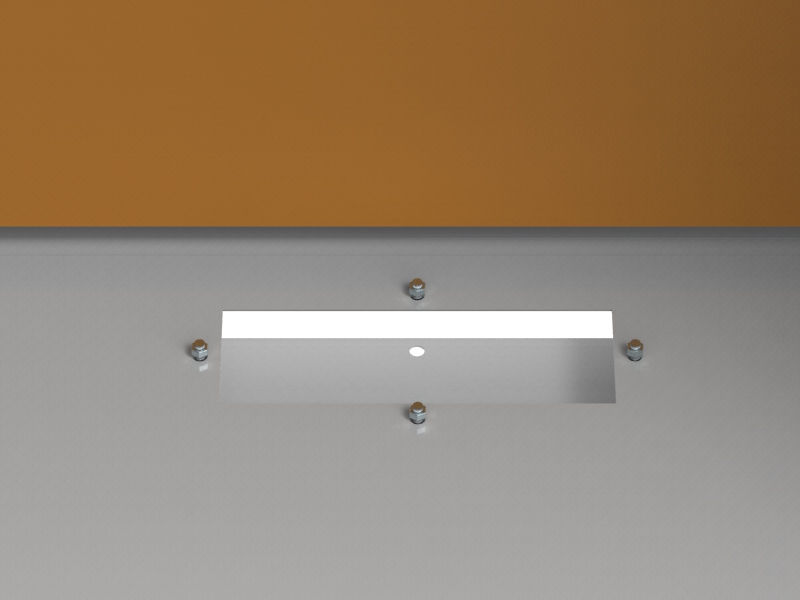

Flange na parte inferior da caixa
Tamanho do flange: 150x50 mm

TABELA DE TAMANHOS E MEDIDAS

Referências	Medidas			Espessura da Chapa
Com Flange	Altura	Largura	Profund.	Quadro	Porta	Placa	Fecho	Dobradiça
11.193214	190mm	320mm	140mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.202012	200mm	200mm	120mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.203214	200mm	320mm	140mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.253514	250mm	350mm	140mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.302020	300mm	200mm	200mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.303015	300mm	300mm	150mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.303020	300mm	300mm	200mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.303025	300mm	300mm	250mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.321914	320mm	190mm	140mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.322014	320mm	200mm	140mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.323817	320mm	380mm	170mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.352015	350mm	200mm	150mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.352514	350mm	250mm	140mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.352520	350mm	250mm	200mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.383217	380mm	320mm	170mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.383222	380mm	320mm	220mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.384817	380mm	480mm	170mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.403020	400mm	300mm	200mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.403025	400mm	300mm	250mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.404020	400mm	400mm	200mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.404025	400mm	400mm	250mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.404030	400mm	400mm	300mm	22 (0,75)	22 (0,75)	18 (1,20)	1	2
11.483817	480mm	380mm	170mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.483822	480mm	380mm	220mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.486017	480mm	600mm	170mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.503020	500mm	300mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.503025	500mm	300mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.504020	500mm	400mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.504025	500mm	400mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.504030	500mm	400mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.505020	500mm	500mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.505025	500mm	500mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.505030	500mm	500mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.604020	600mm	400mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.604025	600mm	400mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.604030	600mm	400mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.604817	600mm	480mm	170mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.604822	600mm	480mm	220mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.605020	600mm	500mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.605025	600mm	500mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.605030	600mm	500mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.606020	600mm	600mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.606025	600mm	600mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.606030	600mm	600mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.705025	700mm	500mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.764817	760mm	480mm	170mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.764822	760mm	480mm	220mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.766022	760mm	600mm	220mm	20 (0,90)	20 (0,90)	18 (1,20)	1	2
11.805020	800mm	500mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.805025	800mm	500mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.805030	800mm	500mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.805035	800mm	500mm	350mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.806020	800mm	600mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.806025	800mm	600mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.806030	800mm	600mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.806035	800mm	600mm	350mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.806040	800mm	600mm	400mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.808020	800mm	800mm	200mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.808030	800mm	800mm	300mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.808025	800mm	800mm	250mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.808035	800mm	800mm	350mm	20 (0,90)	20 (0,90)	18 (1,20)	2	3
11.956022	950mm	600mm	220mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1006020	1000mm	600mm	200mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1006025	1000mm	600mm	250mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1006030	1000mm	600mm	300mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1006035	1000mm	600mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1006040	1000mm	600mm	400mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1008020	1000mm	800mm	200mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1008025	1000mm	800mm	250mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1008030	1000mm	800mm	300mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1008035	1000mm	800mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1008040	1000mm	800mm	400mm	18 (1,20)	18 (1,20)	16 (1,50)	2	3
11.1206025	1200mm	600mm	250mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1206030	1200mm	600mm	300mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1206035	1200mm	600mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1206040	1200mm	600mm	400mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1207622	1200mm	760mm	220mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1207635	1200mm	760mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1208025	1200mm	800mm	250mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1208030	1200mm	800mm	300mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1208035	1200mm	800mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.1208040	1200mm	800mm	400mm	18 (1,20)	18 (1,20)	16 (1,50)	3	3
11.12010030	1200mm	1000mm	300mm	18 (1,20)	18 (1,20)	16 (1,50)	3	4
11.12010035	1200mm	1000mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	3	4
11.12010040	1200mm	1000mm	400mm	18 (1,20)	18 (1,20)	16 (1,50)	3	4
11.1408025	1400mm	800mm	250mm	18 (1,20)	18 (1,20)	16 (1,50)	3	4
11.1408030	1400mm	800mm	300mm	18 (1,20)	18 (1,20)	16 (1,50)	3	4
11.1408035	1400mm	800mm	350mm	18 (1,20)	18 (1,20)	16 (1,50)	3	4
